Penguin Split Commercial Water Chiller

Description

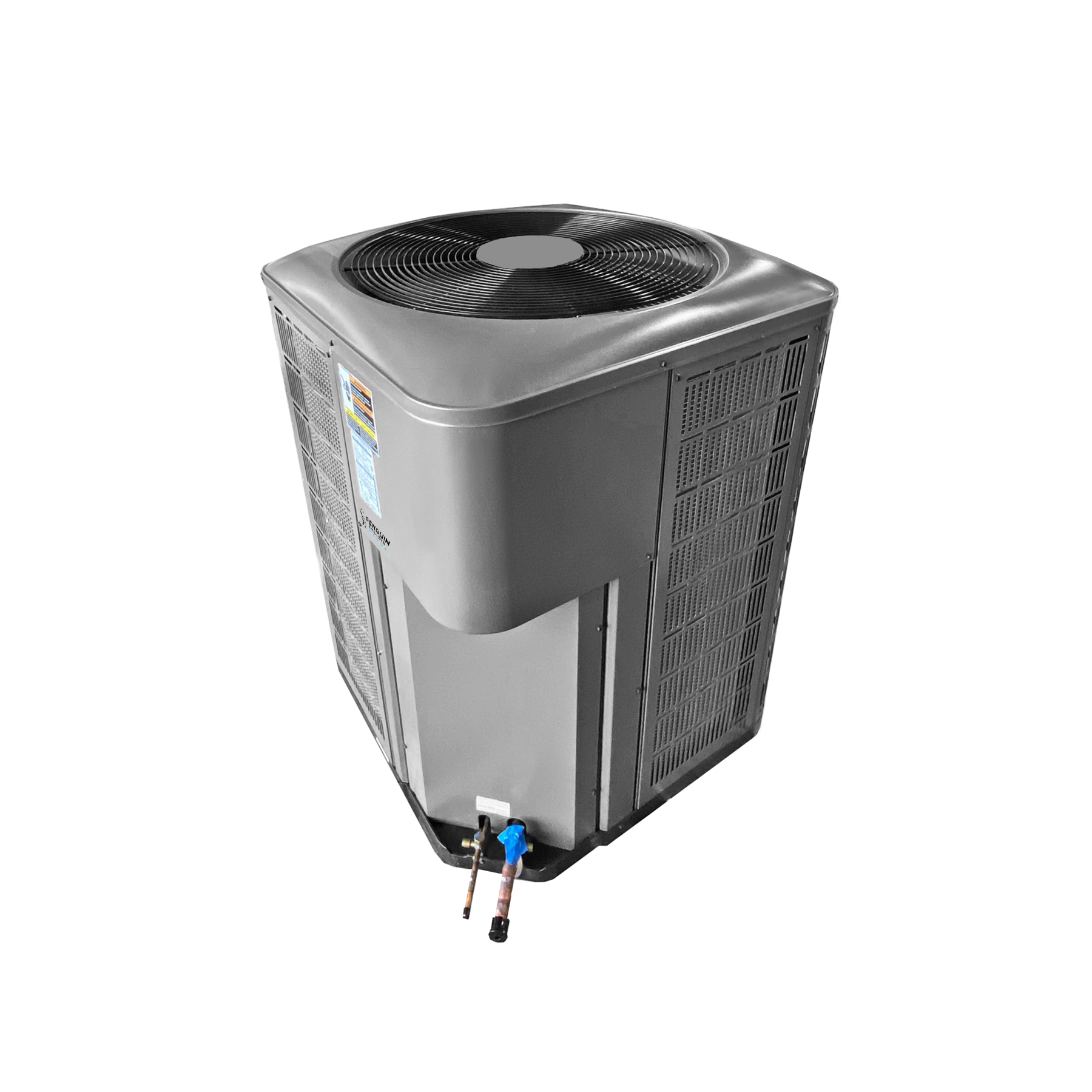

NOTE: The photo shown here is our 5 ton Split Commercial Water Chiller. Our 2 ton chiller will look slightly different with a smaller compressor.

Specifications

2 Ton and 5 Ton Chillers

• 1.5″ Slip Connections
• Titanium Heat Exchanger
• 208 – 240 Volts / Single Phase
• Frame constructed with 304 Stainless Steel
• Condenser: Outdoor rated / pad mount ready
• 1 Year Product Warranty
• Proudly made in the USA

2-Ton Split Water Chiller

• 24,000 BTU/hr.
• 17.7 Amps
• Condenser: 27″W x 27″D x 34″H, 150 Pounds
• Evaporator: 8″W x 42″D x 24″H, 85 Pounds

5-Ton Split Water Chiller

• 60,000 BTU/hr.
• 35.6 Amps
• Condenser: 32″W x 32″D x 45″H, 215 Pounds
• Evaporator : 8″W x 42″D x 37″H, 100 Pounds

A split-series chiller can be used when the evaporator can be installed in a climate-controlled indoor space and the condenser can be installed outdoors. The advantage of this setup is that the evaporator will run more efficiently and the condenser will disperse heat outside.

Our Commercial Split Water Chiller comes on a stainless steel frame. The units come with a built in flow switch to disable the chiller in the event of a pump failure. The units also come with a titanium heat exchanger which is recommended for use in cold plunges. Copper heat exchangers can cause toxic levels of copper to build up in water over time, and are not recommended for cold plunges.  Titanium is cold plunge safe!

Pump and Controller Recommendation

• Pump Recommendation: Danner Magnetic Drive 2400gph – 3600gph. Other pumps may be acceptable for use however they often apply less than 10 psi to the chiller. If you’re using a different pool/spa pump or any other pump rated in horsepower please talk with our tech support first. There is typically a simple work around that allows our chillers to provide cooling to systems which operate at higher pressures. We would be more than happy to help you determine the best method of installation for your system.
• Digital Controller: The controller constantly monitors your systems incoming water temperature, therefore, water flow is needed at all times in order for it to successfully read current temperatures. When your systems water temperature moves above your desired set point, the controller tells the compressor and fan to turn on and begin cooling the water. Once your desired set point temperature is reached, the compressor and fan will turn off.

American owned and operated, Penguin Chillers manufactures a variety of chillers in Knoxville, TN.

We are an authorized Penguin reseller and when you purchase your chiller directly from this website you will receive the same price, warranty, and service as buying directly from Penguin, plus you’ll receive my help! Your patronage helps me support our global cold plunge community, and my family, and is appreciated.

Installation

A licensed electrician and a licensed will be needed to connect commercial chillers. A licensed HVAC technician will be needed to run the copper lines between the condenser and evaporator. Permits may be required – check with your city or county.
