Penguin Cold Therapy Chiller (3/4 HP)

Description

Chiller Only Package includes:

1. 3/4HP Cold Therapy Chiller – outdoor rated!
2. Built-in pump (Rated 1,022 GPH flow rate; Effective rate in the tub is 400 GPH)
3. Two (2) quick-connect fittings to mate with fittings on the back of the chiller; fittings have 3/4″ barbs for connecting 3/4″ ID tubing to the chiller (tubing not included

Optional Chiller & Install/Filter Kit includes:

1. Filter stand, filter canister, and 50-micron filter (3/4″ barbed connections)
2. 15′ Black vinyl tubing – 3/4″ ID
3. Two (2) bulkheads – You’ll need to buy a 1″ hole saw to drill through the wall of your tank
4. Barb fittings to fit the bulkheads and connect the 3/4″ tubing
5. Four (4) hose clamps

Whether you are new to cold therapy or a seasoned pro, you are likely doing it for the benefits that exposure to cold offers rather than the physical workout you’ll get from lugging all the ice needed to keep up with it.  Let’s face it – keeping up with the amount of ice needed to keep an ice bath cold can get to be quite the burden.  Our chiller will keep your ice bath cold effortlessly, leading to more consistent and frequent usage.    Make the most out of your ice bath by turning it into an iceless bath!

The chiller can bring your water down to 40F – 44F, and down to 36F – 39F with the right conditions.  Ambient temps and sun exposure account for most of the heat load on a cold therapy tub (your body heat is insignificant compared to the sun).  Reducing the external heat gain will improve chiller performance.  Low to mid-40s should be possible with about 100 gallons of water, even in full sun or less-than-ideal conditions.

Cost to Run (lower than most expect):

At $0.12/KWh, the monthly cost of operation should be around $18-$28/month.  The compressor and fan only turn on when cooling is needed; once the water reaches your set point, they turn off, and only the low-wattage pump continues to run.

A common question we get revolves around setting the chiller up on a timer.   Ideally, you’ll want to keep the water cold at all times.  There are a few reasons for this –

1. The cold water helps keep bacteria (slimy walls) largely under control by slowing their growth.  This significantly reduces the amount of maintenance needed to keep your water clean for longer periods of time.   This means less frequent water changes and lower sanitizer levels (chlorine/hydrogen peroxide/etc.).
2. If you are cold plunging regularly, the amount of potential power savings will be fairly insignificant. The heat your water would gain in the “off” period still needs to be removed when you turn the chiller back on.  So if running it normally costs $18-$28/month, you might be able to save $3-$5/month. However, you would have to change the water and filter more often, which is unlikely to result in net cost savings.
3. When you cut power to the chiller, you also cut power to the pump.  Pumps get the most wear and tear during startup, which is when a pump is most likely to fail.   Cycling the power to the chiller adds unnecessary wear and tear to the pump.

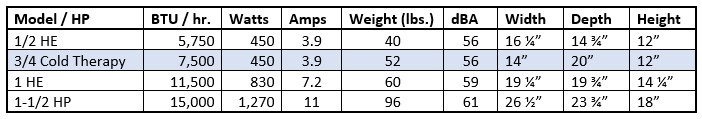

Chiller Specs:

• 3/4HP High-Efficiency Chiller
• 7,500 BTU/hr
• 56 dBA (fairly quiet)
• 110 – 120 Volts / 450 Watts / 3.9 Amps
• 14”W x 20”D x 12”H
• 52 Pounds
• Built-in Pump
• 10′ power cord with GFCI protection
• Weather rated for outdoor use (above-freezing ambient temps only)
• 1-Year Product Warranty
• Proudly made in the USA

*Please note that your setup needs gravity prime to the pump; the pump is incapable of self-priming/suction.   Also, plan to place the chiller within 3′ of your tub drain. The bottom of the chiller should be at the same or lower height compared to the bottom of your tub – do not elevate the chiller above the tub.  An overly long tubing run from the tub drain to the chiller inlet may cause the pump to fail to move enough water.

FREE SHIPPING (Continental 48 States).

American-owned and operated, Penguin Chillers manufactures a variety of chillers in Knoxville, TN. Purchase your chiller directly from us and we will continue offering you quality service throughout the life of your unit. If you need liquid of any sort cooled, we’re here to help.
